Heatfit - Unheaded - M4
Heatfit - Unheaded - M4

Heatfit - Unheaded - M4

F1/B-M4
From £10.19 per pack£8.49 ex. VAT
in stock.
Choose Quantity
Select expand more

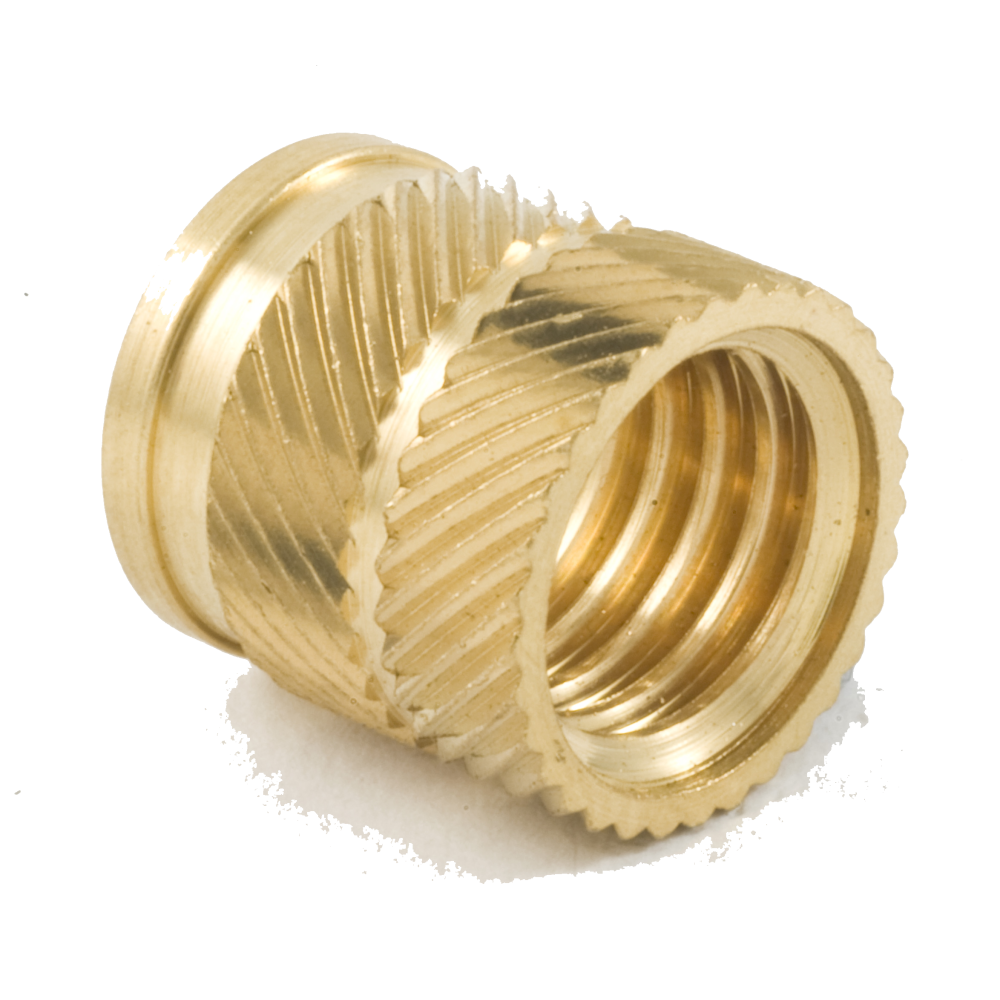

The brass Heatfit range of threaded inserts for plastic injection mouldings are installed in drilled or moulded-in holes using heat staking or ultrasonic. With opposing herringbone knurl on the outside, this type of knurl allows for a greater retention in the plastic. As the insert is double ended this allow for rapid installation during automatic feeding.


Part No. 1,000 - 1020006
Part No. 500 - 0951006
Part No. 100 - 0901006

Specification

Material:Brass
Thread Size:M4
Recommended Hole Size:5.60mm
Recommended Sheet Thickness:2.50mm
Dimension (A):8.20mm
Dimension (B):6.30mm
