Kwik-Sert® - Brass - M6

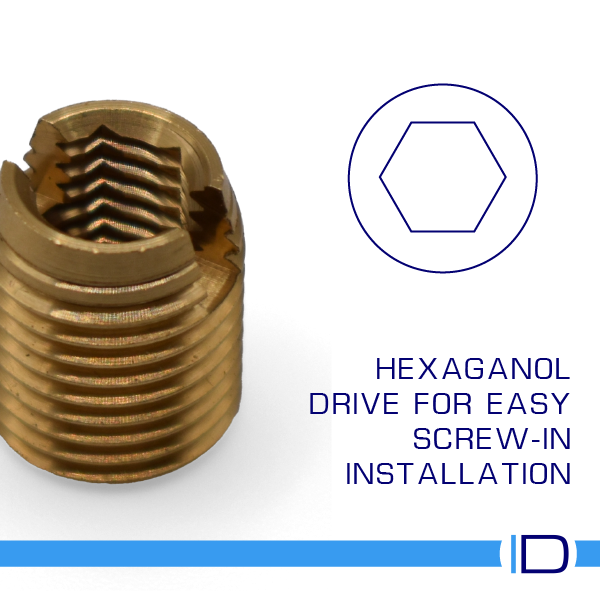

Self-tapping threaded insert with hexagonal drive
From £10.45 per pack£12.54 inc. VAT
Choose Quantity
Select expand more
Kwik-Sert®, available exclusively from InsertsDirect, is a versatile metal threaded insert designed for fast, reliable installation. These self-tapping, screw-in inserts feature a unique hexagon drive, allowing them to be installed quickly and efficiently using a standard Allen key or hex key — no specialist tooling required.

Available in high-quality brass, Kwik-Sert® inserts are engineered for use in most thermoplastic and thermoset materials, providing strong, permanent threads in a wide range of applications. The self-cutting thread design delivers excellent performance, requiring less driving torque and producing a load-bearing thread with high pull-out and torque strength.

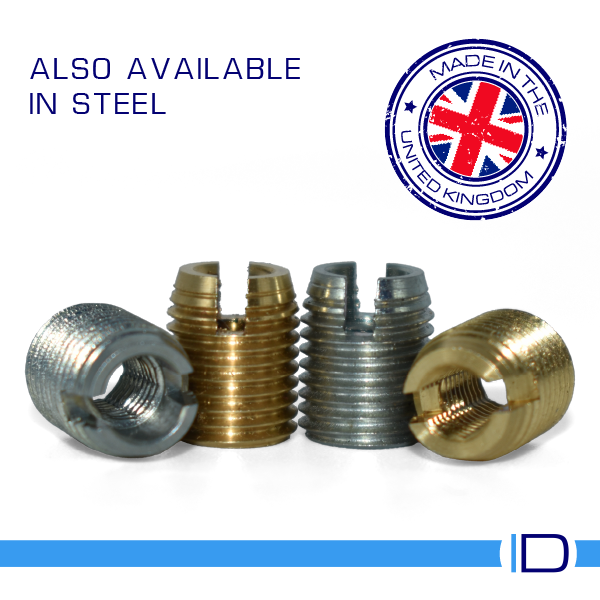

Proudly manufactured in the UK, all Kwik-Sert® products are produced to exacting engineering standards for consistent quality and precision. Local manufacturing ensures shorter lead times, dependable supply, and reduced environmental impact — supporting sustainable, British-made production while guaranteeing every insert meets our strict performance criteria.

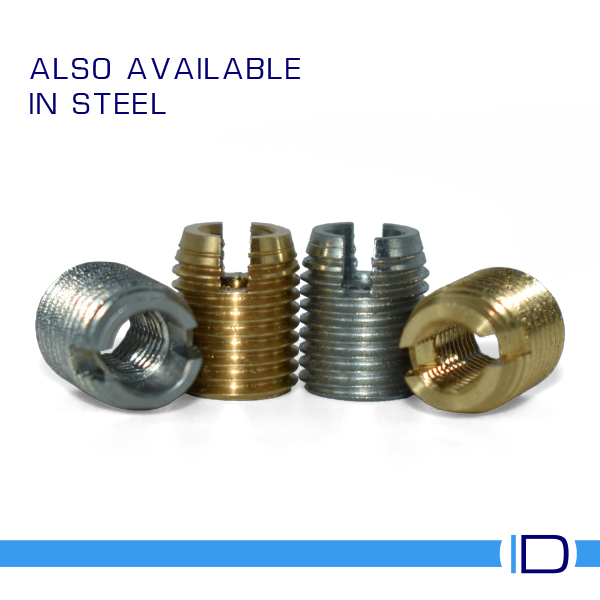

Our Kwik-Sert® range is available in pack sizes of 10, 100 and 1,000 with a steel-plated option for use in metal applications – Kwik-Sert® Steel.

Not included in our volume discount
Thread Size:M6
Pitch Size:1.00mm
Recommended Hole Size:9.25mm

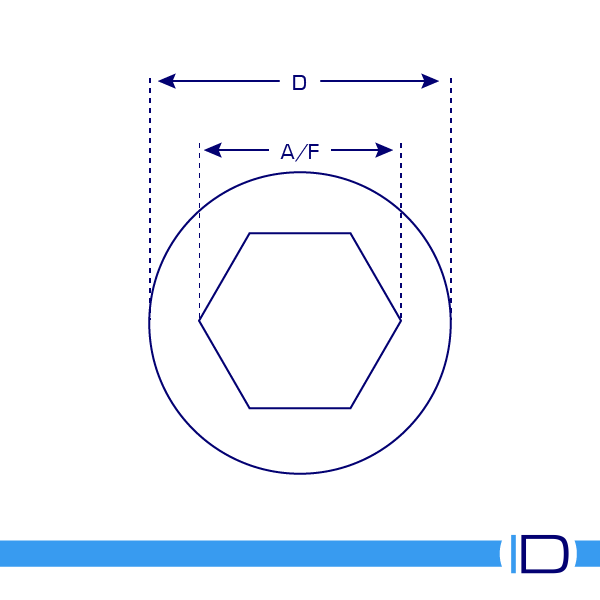

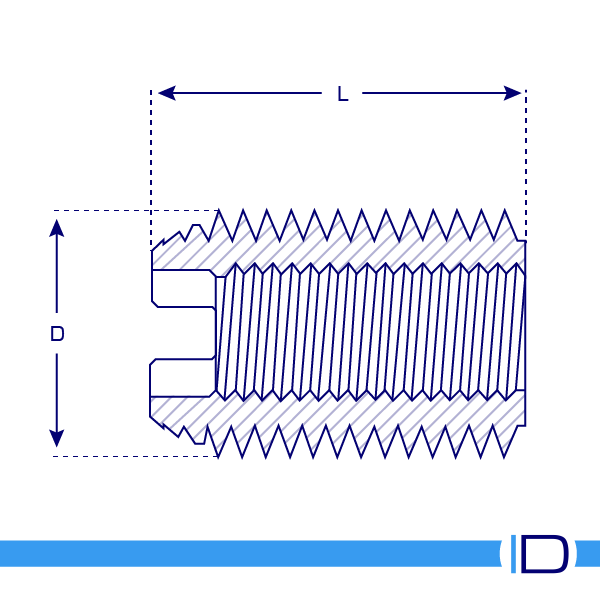

Dimension (D):10.00mm
Dimension (L):12.70mm
Dimension (A/F):5.00mm
Material:Brass
  • QTY 10 - 9923112
  • QTY 100 - 9923212
  • QTY 1,000 - 9923412

  • Also known by part number KS0610B
