Mouldfit - M6
F6/T1-B-M6
From £30.46 per pack£25.38 ex. VAT
in stock.
Choose Quantity

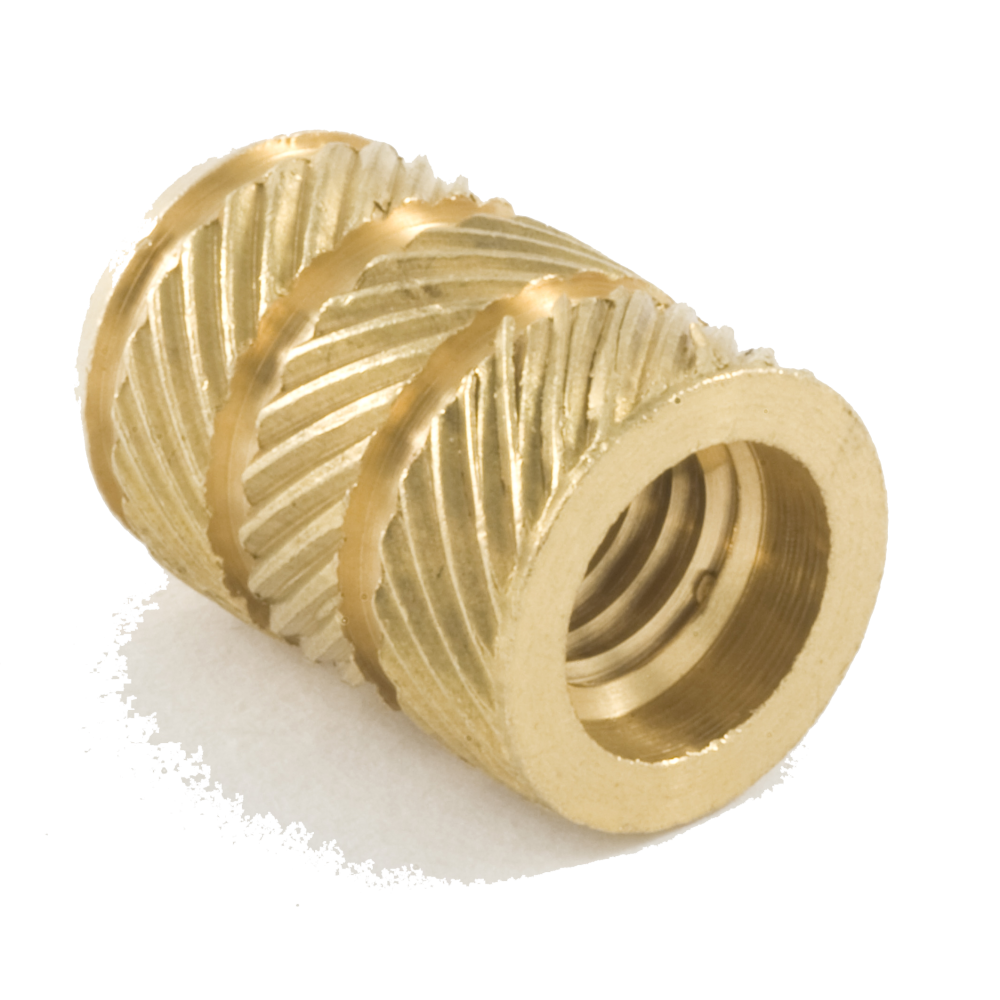

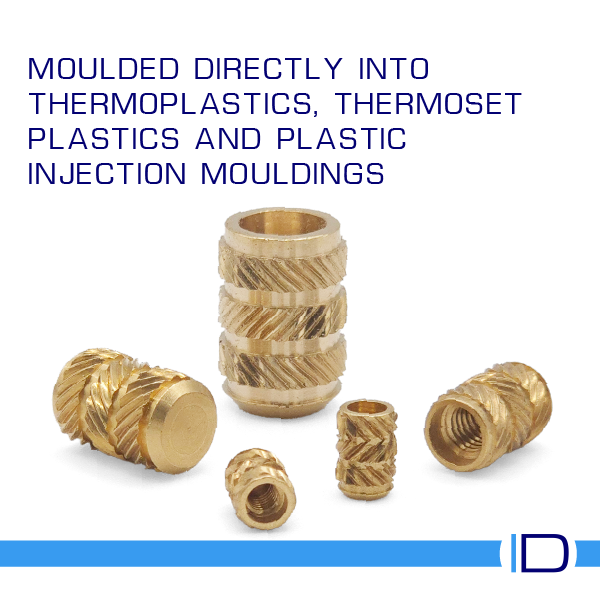

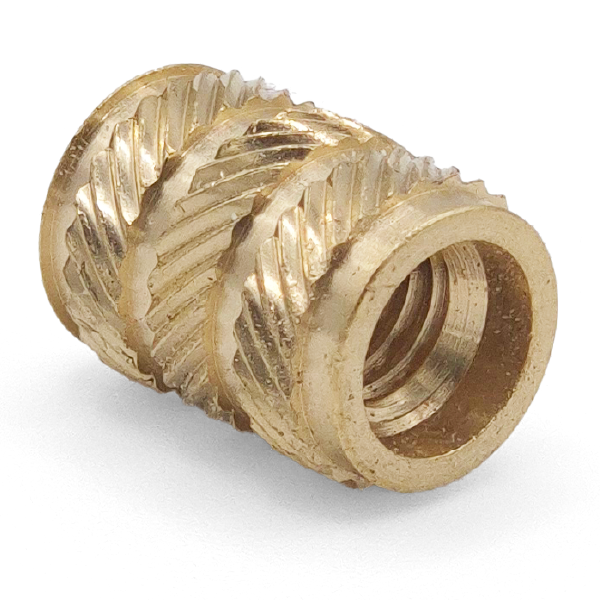

The mouldfit insert is designed to be moulded rather than post mould insertion.

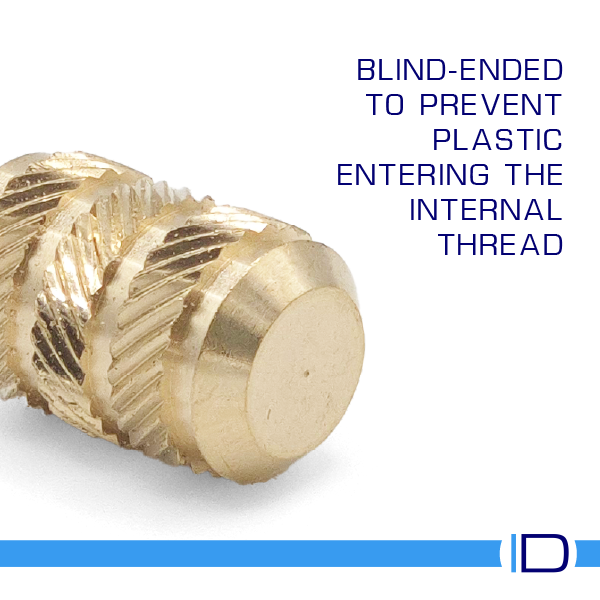

This insert is blind-ended in design, which prevents any plastic entering the internal thread.
Part No. 1,000 - 5470307
Part No. 500 - 0951307
Part No. 100 - 0901307
This insert is blind-ended in design, which prevents any plastic entering the internal thread.
Part No. 1,000 - 5470307
Part No. 500 - 0951307
Part No. 100 - 0901307

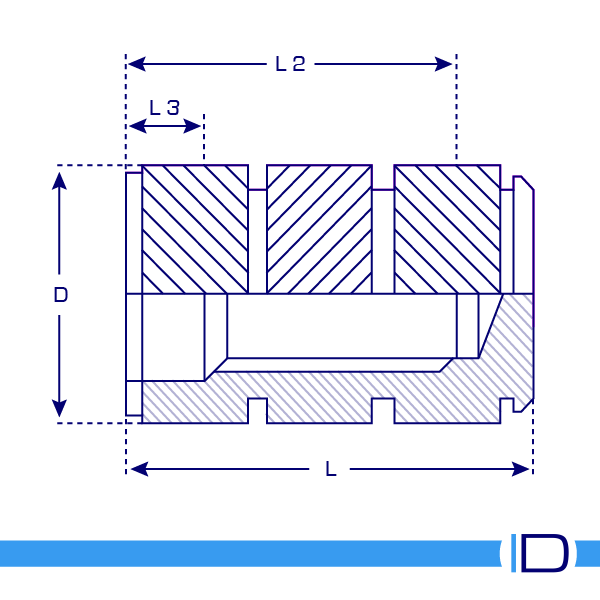

Specification
| Material: | Brass |
| Thread Size: | M6 |
| Dimension (A): | 14.40mm |
| Dimension (B): | 9.80mm |
| Dimension (C): | 8.10mm |
| Dimension (D): | 2.05mm |
