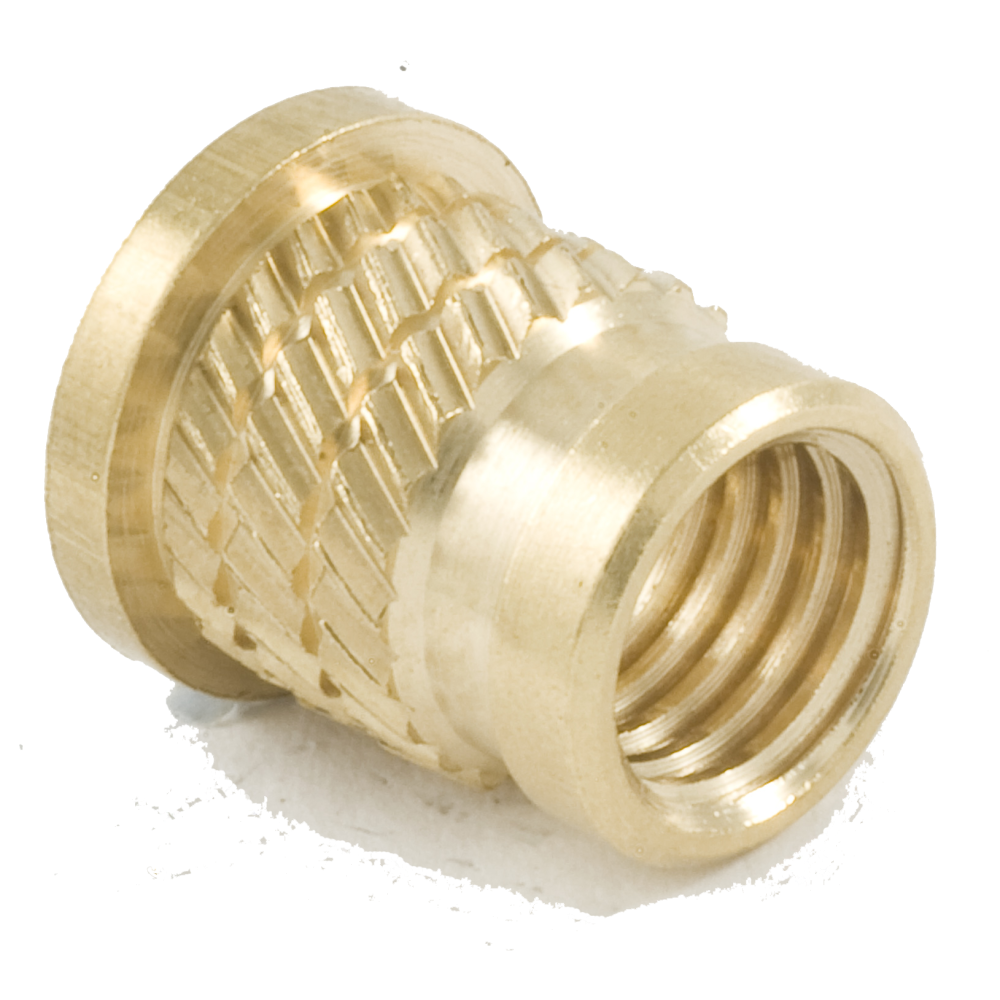

Pressfit - Headed - M6 - BZP
Designed to be installed into Thermosetting Plastics
£38.36£46.03 inc. VAT
Choose Quantity
Our Pressfit brass threaded inserts are easy to install, do not require expensive equipment but must be installed using a slow squeezing action allowing the insert to rotate during the installation.
This is a bright zinc plated (BZP) version of our standard Headed M6 Pressfit insert, so it appears silver in colour. Not only do they have an aesthetic ‘bright’ finish but this type of plating also helps to improve corrosion resistance.
This is a bright zinc plated (BZP) version of our standard Headed M6 Pressfit insert, so it appears silver in colour. Not only do they have an aesthetic ‘bright’ finish but this type of plating also helps to improve corrosion resistance.
| Thread Size: | M6 |
| Pitch Size: | 1.00mm |
| Recommended Hole Size: | 7.80mm |
| Minimum Wall Thickness: | 2.80mm |

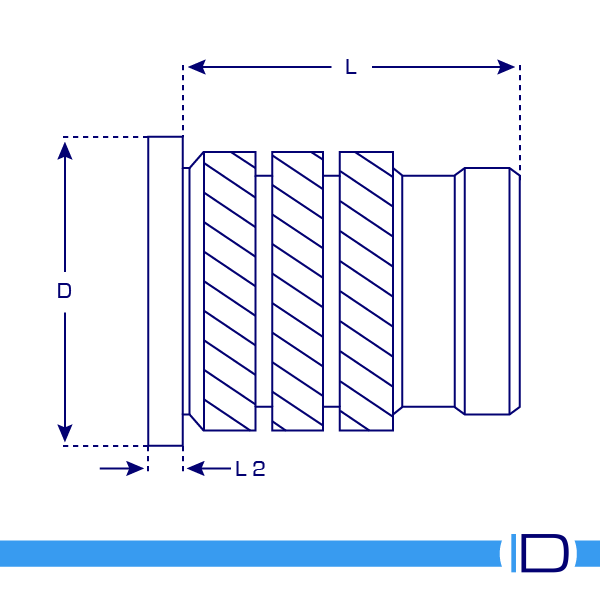

| Dimension (D): | 9.50mm |
| Dimension (L): | 9.20mm |
| Dimension (L2): | 1.32mm |
| Material: | Brass |
| Finish: | Bright Zinc Plated (BZP) |
Also known by part number F2/H-B-M6
