Pressfit - Reverse Headed - Slotted - M6
F4/2R-B-M6
From £42.76 per pack£51.31 inc. VAT
Choose Quantity

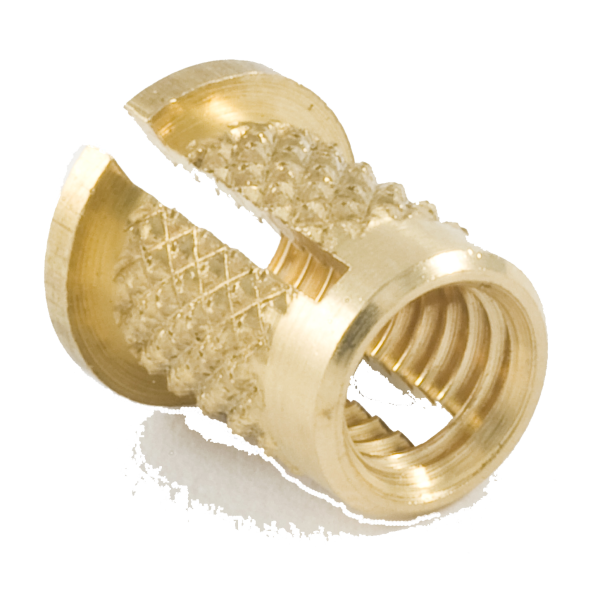

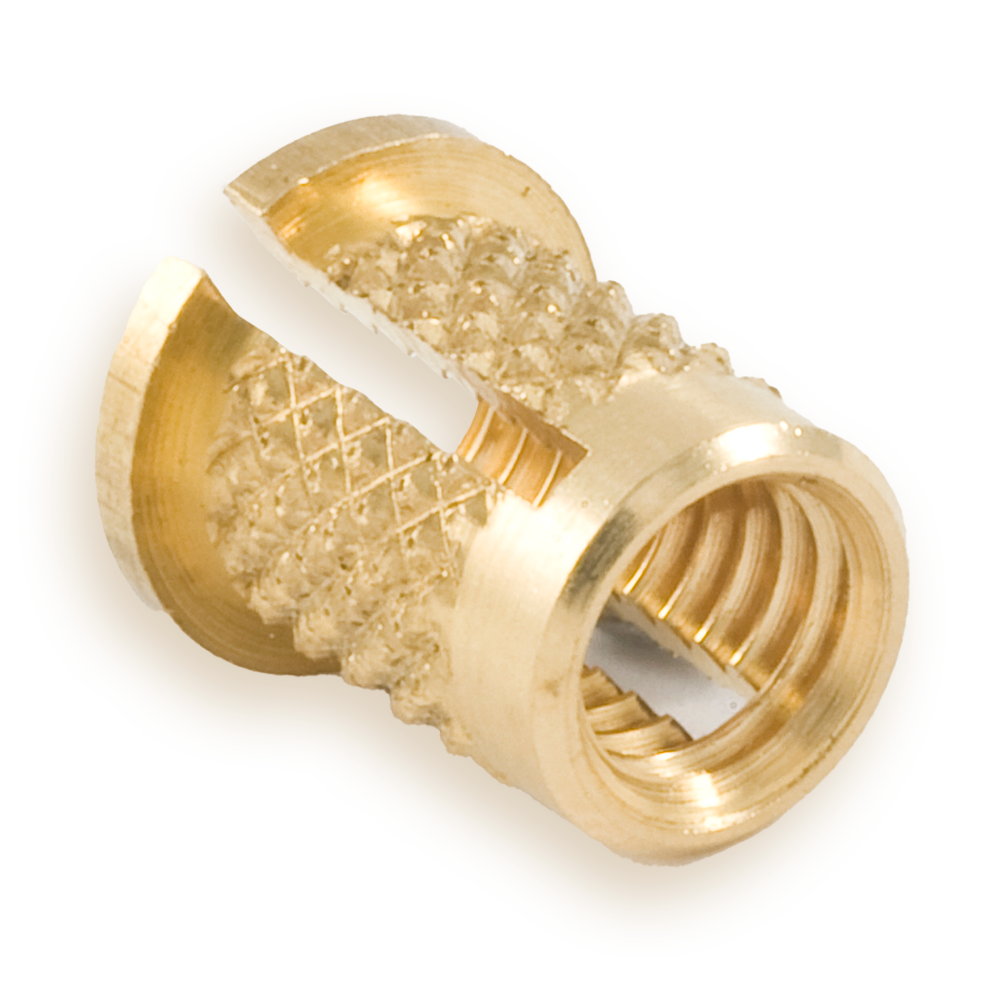

The reverse headed Pressfit expandable inserts are easy to install and do not require expensive equipment.
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 4100059
Part No. 100 - 0900159
Note: Equivalent to PSM Fasteners N42R-B-M6 Banc-Lok insert
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 4100059
Part No. 100 - 0900159
Note: Equivalent to PSM Fasteners N42R-B-M6 Banc-Lok insert
| Thread Size: | M6 |
| Recommended Hole Size: | 8.00mm |
| Dimension (D): | 7.90mm |
| Material: | Brass |
| Dimension (A): | 12.60mm |
| Dimension (B): | 1.25mm |
| Dimension (C): | 9.50mm |
