Rivet Nut - Round Low Profile - Aluminium - M4
Create a load-bearing thread in thin-walled components with a flush finish
£5.95£7.14 inc. VAT
Choose Quantity
Rivet Nuts are the perfect solution for creating strong, secure threads in thin or soft materials where traditional tapping is not feasible. This low-profile version sits flush with the surface after installation into a plain or countersunk hole, providing a clean finish without sacrificing clamping force.

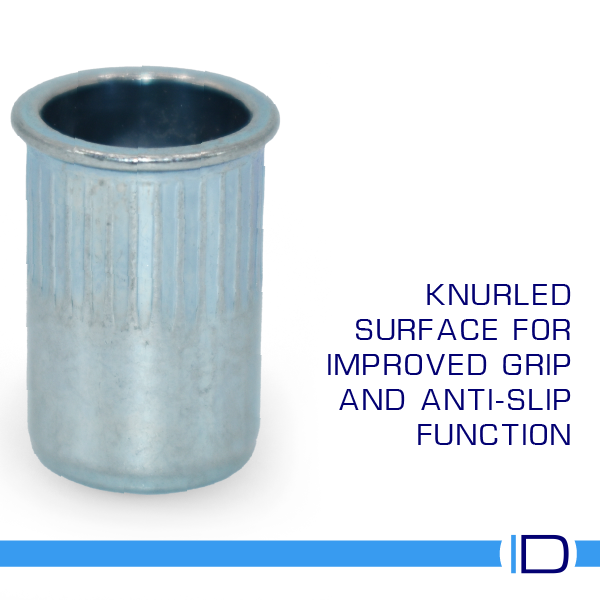

They feature a round, knurled body which prevents rotation within the material after installation and are open ended for applications where a through-hole is needed. These Rivet Nuts, also known as Rivnuts, Nutserts or thin sheet Rivet Nuts, are ideal for high-stress applications across automotive, aerospace, construction, electronics and other industrial sectors.
Designed for fast installation into pre-drilled holes using standard Rivet Nut tools, they are a great solution for blind assembly where there is no access to the back of the material. The lower portion of the body expands radially on the blind side when setting, securely clamping the material to create a strong, permanent threaded connection.
Manufactured from high-grade aluminium, they offer excellent strength-to-weight ratio and corrosion resistance, making them ideal for high-moisture environments and applications where minimising overall weight is critical, such as marine assemblies. Available in a variety of thread sizes and grip ranges, they’re a versatile fastening solution for professionals and DIY enthusiasts alike.
They feature a round, knurled body which prevents rotation within the material after installation and are open ended for applications where a through-hole is needed. These Rivet Nuts, also known as Rivnuts, Nutserts or thin sheet Rivet Nuts, are ideal for high-stress applications across automotive, aerospace, construction, electronics and other industrial sectors.
Designed for fast installation into pre-drilled holes using standard Rivet Nut tools, they are a great solution for blind assembly where there is no access to the back of the material. The lower portion of the body expands radially on the blind side when setting, securely clamping the material to create a strong, permanent threaded connection.
Manufactured from high-grade aluminium, they offer excellent strength-to-weight ratio and corrosion resistance, making them ideal for high-moisture environments and applications where minimising overall weight is critical, such as marine assemblies. Available in a variety of thread sizes and grip ranges, they’re a versatile fastening solution for professionals and DIY enthusiasts alike.
Material: | Aluminum |
Thread Size: | M4 |
Recommended Hole Size: | 6.40mm |
Recommended Sheet Thickness: | 0.50mm - 2.00mm |

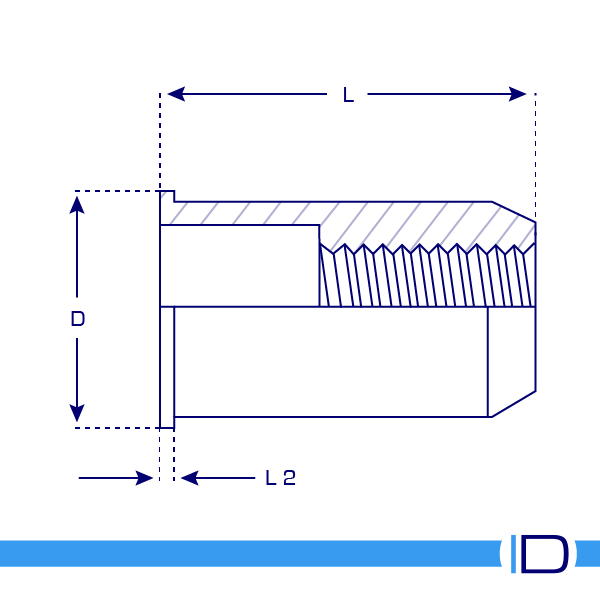

Dimension (D): | 7.00mm |
Dimension (L): | 10.40mm |
Dimension (L2): | 0.40mm |
