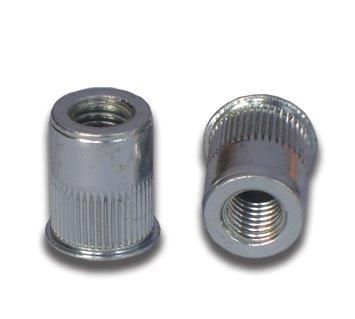

Rivet Nut - Round Thin - Steel - M3
£4.80 £4.00 ex. VAT
in stock.
Choose Quantity
The round thin rivet nut is suitable for use in materials with reduced thickness where a resistant and reliable thread is needed.
This rivet nut offers fast and high precision assembly and can be used with a wide range of tools.
The low profile head allows a near flush fit and can clamp two or more sheets of material together.
Part No. 100 - 5802217
This rivet nut offers fast and high precision assembly and can be used with a wide range of tools.
The low profile head allows a near flush fit and can clamp two or more sheets of material together.
Part No. 100 - 5802217
Specification
| Material: | Steel |
| Thread Size: | M3 |
| Recommended Hole Size: | 4.80mm |
| Recommended Sheet Thickness: | 0.50mm - 1.80mm |
| Dimension (A): | 9.20mm |
| Dimension (B): | 4.70mm |
| Dimension (C): | 5.20mm |
| Dimension (D): | 0.50mm |
