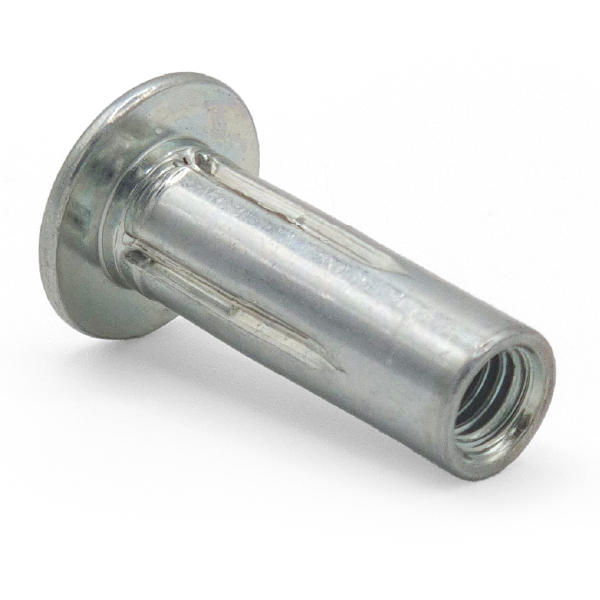

Versa Nut 2nd grip insert for thick material fastening

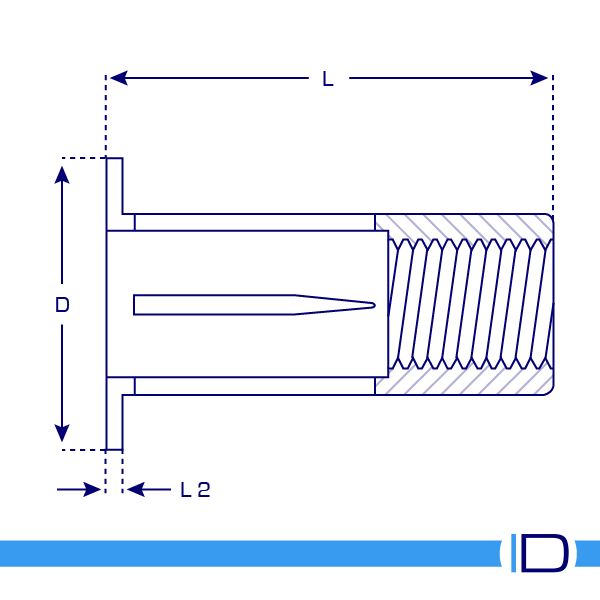

Heavy duty Versa Nut schematic drawing

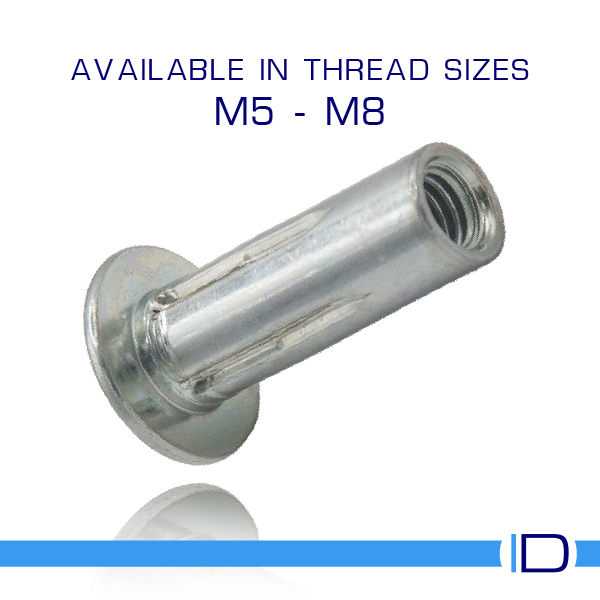

Versa Nut blind side expansion in thick panel

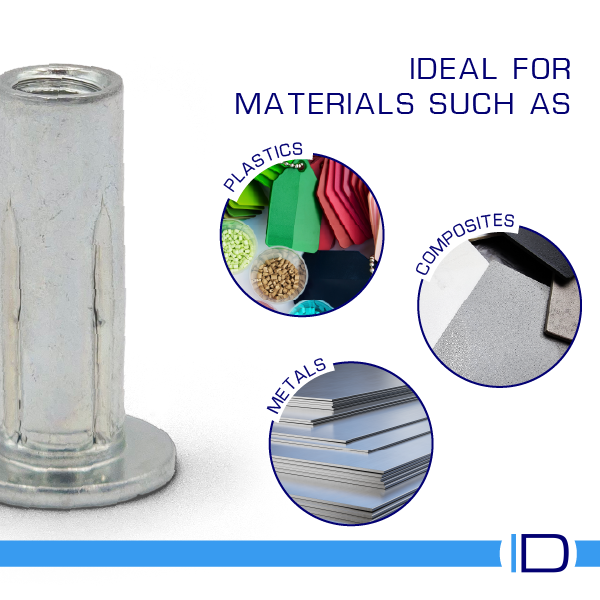

Threaded insert Versa Nut for metal and composite panels

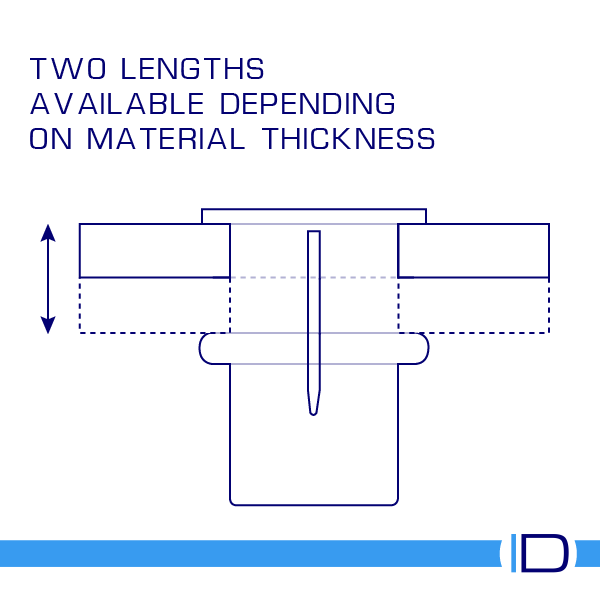

Wide grip range Versa Nut threaded insert

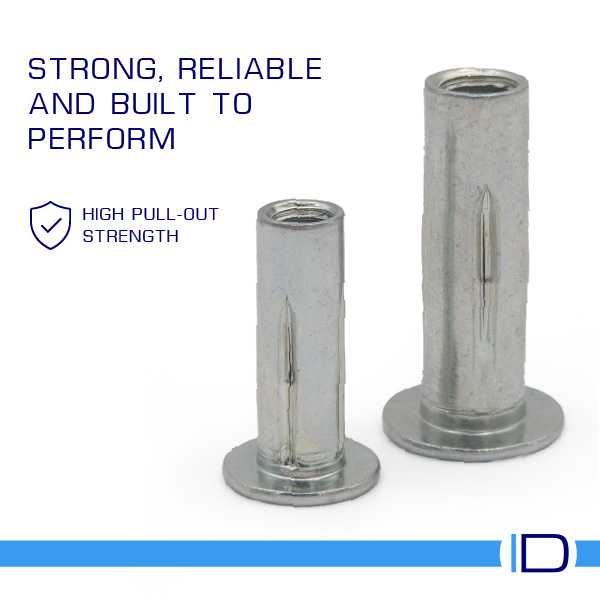

High strength threaded Versa Nut insert
Versa Nut 2nd grip insert for thick material fastening
Heavy duty Versa Nut schematic drawing
Versa Nut blind side expansion in thick panel
Threaded insert Versa Nut for metal and composite panels
Wide grip range Versa Nut threaded insert
High strength threaded Versa Nut insert

Versa Nut - Long - M8

High-strength wide grip range threaded insert
£67.10£80.52 inc. VAT
Choose Quantity
Select expand more
Versa Nuts are high-performance steel, zinc plated threaded inserts designed for use in plastics, composites, fibreglass, and metal panels. Combining the strength of Rivet Nuts with the flexibility of Jack Nuts, these hybrid inserts offer an exceptional grip range—up to twice that of standard blind inserts.

The Long version is designed for thicker material sections, with a higher grip range suited to more robust applications. It provides a reliable fastening solution with excellent pull-out resistance and torque performance, while the large blind-side footprint ensures effective load distribution—ideal for applications where standard inserts may not suffice. If your application requires a lower grip range, shop our Short Versa Nuts here. Alternatively, for applications requiring lower load capacity, Screw Anchors may be sufficient.

Installation is quick and simple, as Versa Nuts are compatible with most standard Rivet Nut tools. For optimal performance, we’d recommend our Battery Powered or Pneumatic Rivet Nut Tooling. Alternatively, for tool-free installation, Rubber Nuts offer a quick and convenient solution.

Not included in our volume discount
Thread Size:M8
Pitch Size:1.25mm
Recommended Hole Size:11.11mm - 11.50mm
Grip Range:7.10mm - 12.70mm
Dimension (D):19.29mm
Dimension (L):36.87mm
Dimension (L2):1.70mm
Material:Mild Steel
Finish:Bright Zinc Plated (BZP)
  • QTY 100 - 5502846

  • Also known as quad nut inserts
